Estate Series

Champion Safe Company is proud to announce the 2025 enhancements to its Estate Series, combining top-tier security with a touch of luxury. Known for offering a sophisticated blend of security and style, the Estate Series is designed to meet the needs of discerning homeowners who seek both protection and elegance for their valuables. The 2025 updates further improve the strength, functionality, and appearance of these safes.

  • Fire and Security Ratings

    • 1200°F 2-Hour Fire Rating
    • Phoenix™ Class III Fire Protection
    • Tested in an ASME Certified Facility
    • UL® Security Rating
    • Lifetime Warranty

    Locking System

    • Sargent & Greenleaf® Group II Dial Lock Standard
    • Champion’s Auto-Relock™ System
    • Diamond-Embedded Armor Plate™

    Boltworks

    • Four-Way Active Boltworks
    • Up to 12, 1-1/4″-Diameter Door Bolts
    • Bolt-Detent™ System
    • Roughneck™ Bolt Guides

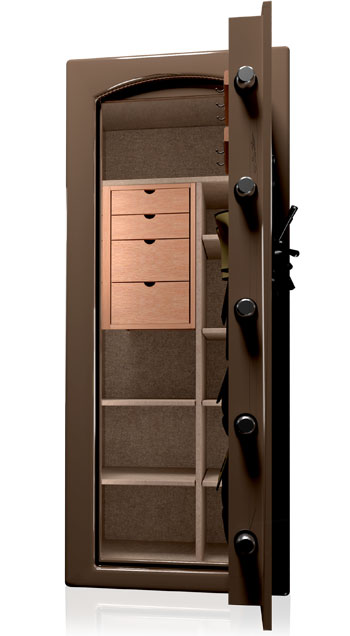

  • Interior

    • Plush Interior
    • Wood Drawers w/Jewelry Inserts
    • LED Lighting with Motion Sensor
    • 110-Volt Power Receptacle
    • Jewelry/Key Hooks
    • Deluxe Door Organizer
    • Adjustable Gun Rack

    See Interior Configurations Below

    High Security Door

    • 4-1/2″-Thick Double Plate Steel Door™
    • 10-Gauge Outer Steel, Full 14-Gauge Inner
    • 3/4″ Reinforced Door Edge
    • External Ball-Bearing Hinges
    • Three Layers of Fire Insulation
    • Five-Spoke Handle with Slip Clutch

    Body

    • Up to Two-Inch Thick Composite Walls
    • 11-Gauge Steel Walls
    • Up to Three Layers of Fire Insulation
    • Heat-Expanding Fire Seal
    • 1/2″ Radius Edges
    • Double-Steel Door Casement™



Locks


Standard Dial                                       Optional E-Lock



Exterior Color Selections



Sizes and Dimensions

Safe Model Exterior Dimensions Volume (Cubic Ft.) Approx. Weight (lbs.) Outer Shell Thickness Outer Door Thickness Inner Door Thickness Active Door Bolts Gun Capacity
Width Height Depth Total Depth*
EC-17 24" 60" 21" 23-1/2" 17 CF 570 11 ga. 10 ga. 14 ga. 12 - 1-1/4" 4
EC-14 24" 48" 21" 23-1/2" 14 CF 425 11 ga. 10 ga. 14 ga. 10 - 1-1/4" 4
EC-10 24" 36" 21" 23-1/2" 10 CF 345 11 ga. 10 ga. 14 ga. 8 - 1-1/4" N/A
*Total Depth includes 2½" for handle.
