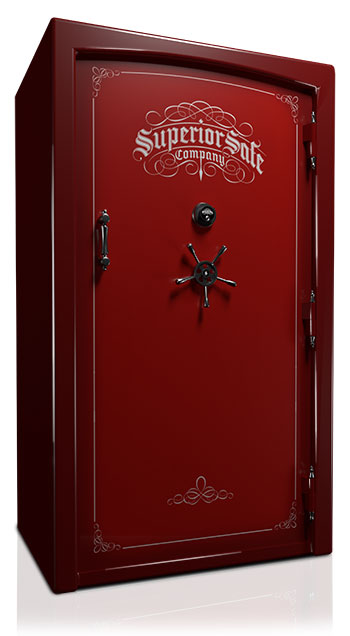

The Supreme Series safes are truly the ideal in safe production, containing more steel than any other safe in the industry. Their unparalleled structure includes a Double-Step™ door with dual heat-expanding seals, four layers of fire protection, and a glass relock system. The unsurpassable radius, door edges and luxurious standard of two-tone finishes set them apart as the ultimate safe.
-
-
Fire and Security Ratings
- UL® Residential Security Rating
- 1750° 120-Minute Fire Rating
- Tested in an ASME Certi?ed Facility
- Lifetime Warranty
Locking System
- Sargent & Greenleaf® Group II Dial Lock
- Glass-Guard™ Relock System with Remote Relockers
- Superior’s Auto-Relock™ System
- Diamond-Embedded Armor Plate™
Boltworks
- Radial Gear-Driven Boltworks
- Four-Way Active Boltworks
- Up to 20, 1-1/2″-Diameter Bolts
- Door-Detent™ System
- Roughneck™ Bolt Guides
-
Interior
- Plush Velour Interior
- High Capacity Gun Racks
- Steel Reinforced Top Shelves
- LED Lighting with Motion Sensor
- External 120-Volt Inlet
- Deluxe Door Organizer
See Interior Configurations Below
Maximum Security Door
- 5-1/2″- Thick Double-Step™ Door
- 1/4″ Outer Steel, 10-Gauge Inner Steel
- 1/2″ Reinforced Door Edge
- External Ball-Bearing Hinges
- Three Layers of Fire Insulation
- Five-Spoke Custom Handle with Slip Clutch
Body
- 2-3/4″-Thick Composite Walls
- 7-Gauge Steel Walls
- Four Layers of Fire Insulation
- Double-Steel Door Casement™
- Two Fire Seals
Locks
Standard Dial Optional E-Lock
Exterior Color Selections
Sizes and Dimensions
| Safe Model | Exterior Dimensions | Volume (Cubic Ft.) | Approx. Weight (lbs.) | Outer Shell Thickness | Outer Door Thickness | Inner Door Thickness | Active Door Bolts | Gun Capacity | |||
| Width | Height | Depth | Total Depth* | ||||||||
| SU-60 | 48" | 72.5" | 28" | 30-1/2" | 56 CF | 1730 | 7 ga. | 1/4" | 10 ga. | 20 - 1-1/2" | 64 |
| SU-50 | 42" | 72.5" | 28" | 30.5" | 50 CF | 1560 | 7 ga. | 1/4" | 10 ga. | 18 - 1-1/2" | 52 |
| SU-40 | 36" | 66.5" | 26" | 28.5" | 38 CF | 1200 | 7 ga. | 1/4" | 10 ga. | 16 - 1-1/2" | 43 |
| SU-30 | 30" | 66.5" | 24" | 26.5" | 30 CF | 1070 | 7 ga. | 1/4" | 10 ga. | 16 - 1-1/2" | 36 |
| *Total Depth includes 2½" for handle. |
Interior Layouts
